Model: CS6030 (60W30AH12.8V)

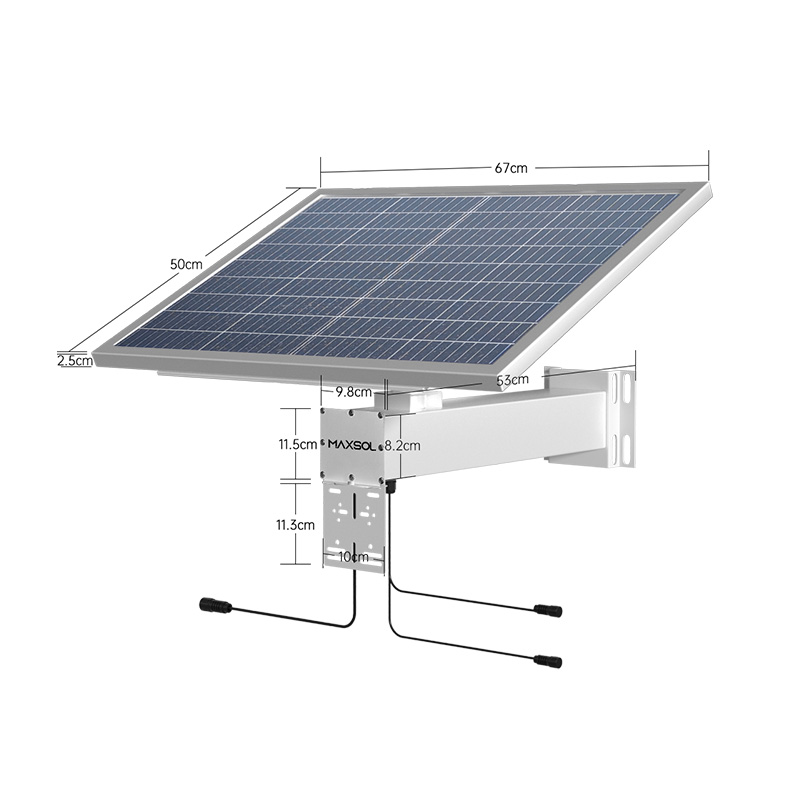

60W Solar Power System with 384Wh LiFePO4 Battery
Robust 60W solar solution for off-grid CCTV. 384Wh LiFePO4 battery with MPPT & RS485 support. High-efficiency power for industrial security integrators.
Key features
- CCTV Solar Power Supply 60W30AH 384WH Solution
- Solar panel: 60W monocrystalline silicon solar panel
- Battery: 30AH12.8V LifePO4 Battery, total: 384WH
- MPPT Solar Controller, 3*DC12V Output Port
- Installation Bracket for Solar Panel and Battery
- Other accessories: Battery Mount, Screws, DC Cable, etc
- Optional Selection: RS485
Specification
Solar Panel Specification
- Model
- CS6030 (60W30AH12.8V)
- STC peak power
- 60W (single piece)
- Module packaging
- Tempered glass/EVAcell/EVA backplane
- Solar silicon crystal
- Mono-crystalline silicon
- Crystalline silicon characteristics
- High efficiency of strong light conversion
- Cell size and quantity
- 210*40/33
- Maximum output power
- 60W
- Maximum operating voltage
- 19.38V
- Maximum operating current
- 3.10A
- Open circuit voltage
- 22.0V
- Short circuit current
- 3.47A
- Tolerance
- 5%
- Maximum system open circuit voltage
- 1000V
- Solar Panel Dimensions
- 670mm*500mm*25mm
- Operating temperature range
- -40~85℃
- Relative humidity
- <90%
- Frame thickness
- 0.88MM
- Frame
- Anodized aluminum alloy
Battery Specification
- Solution
- MPPT (input maximum power tracking algorithm), constant voltage output,
- Battery capacity
- 12.8V/30AH (384WH)
- Charging indication
- LED status indicator
- Input interface
- Photovoltaic aviation plug
- Output interface
- DC5.5mm diameter standard male plug, 3-way output
- Output voltage
- 12V±50mV
- Output current
- ≤3A±50mA (total of three outputs)
- Discharge utilization
- ≤90%
- Operating temperature
Charging: 0~45℃
Discharging: -10~55℃ (accuracy: ±1℃)
- Over-current protection
- >4A (over-current protection for more than 3 seconds, green light flashes)
- Overcharge and over-discharge protection
Over-discharge protection: <10V;
Over-charge protection: >14.6V (accuracy: ±0.1V)
- Output short circuit protection
- Green light flashes, green light stays on after short circuit is removed
- RS-485 communication
- Output power, voltage, current and other information according to customer needs
- Battery heating function
- When photovoltaic input is available, heating starts when temperature is below 0℃, and stops when temperature rises to 8℃
- Heating power
- Maximum 15W
- Storage temperature
- -20~35℃
- Battery case Dimensions
- 500mm*98mm*82mm
- Product capacity
- 20%-30%
- Battery material
- Lithium iron phosphate/LifePO4 battery
Battery life and charging
- Power off battery life
- 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
- Power on battery life
- About 25 days (normal temperature, no load)
- Load battery life
- Actual operating time depends on the connected load, battery capacity and operating conditions. For reference, the system runtime can be estimated by dividing the usable battery capacity (Wh) by the total load power (W), assuming no solar charging.
- Recharge time (0~100% power)
- Approx. 2–3 days under standard sunlight conditions (4–5 peak sun hours per day, normal temperature). Actual charging time may vary depending on sunlight intensity, system efficiency and power consumption.
All-in-one Package
- Size
- 730*510*225MM
- Weight (Include bracket and accessories)
- 11.5KG
- Content
1* Solar Panel
1* Battery case (inside with battery) with DC output connectors
1* Bracket for Solar panel &Battery case
1* U Shape mount for Pole installation
1* Screws pack
Solar Panel Specification
- Model
- CS6030 (60W30AH12.8V)
- STC peak power
- 60W (single piece)
- Module packaging
- Tempered glass/EVAcell/EVA backplane
- Solar silicon crystal
- Mono-crystalline silicon
- Crystalline silicon characteristics
- High efficiency of strong light conversion
- Cell size and quantity
- 210*40/33
- Maximum output power
- 60W
- Maximum operating voltage
- 19.38V
- Maximum operating current
- 3.10A
- Open circuit voltage
- 22.0V
- Short circuit current
- 3.47A
- Tolerance
- 5%
- Maximum system open circuit voltage
- 1000V
- Solar Panel Dimensions
- 670mm*500mm*25mm
- Operating temperature range
- -40~85℃
- Relative humidity
- <90%
- Frame thickness
- 0.88MM
- Frame
- Anodized aluminum alloy
Battery Specification
- Solution
- MPPT (input maximum power tracking algorithm), constant voltage output,
- Battery capacity
- 12.8V/30AH (384WH)
- Charging indication
- LED status indicator
- Input interface
- Photovoltaic aviation plug
- Output interface
- DC5.5mm diameter standard male plug, 3-way output
- Output voltage
- 12V±50mV
- Output current
- ≤3A±50mA (total of three outputs)
- Discharge utilization
- ≤90%
- Operating temperature
Charging: 0~45℃
Discharging: -10~55℃ (accuracy: ±1℃)
- Over-current protection
- >4A (over-current protection for more than 3 seconds, green light flashes)
- Overcharge and over-discharge protection
Over-discharge protection: <10V;
Over-charge protection: >14.6V (accuracy: ±0.1V)
- Output short circuit protection
- Green light flashes, green light stays on after short circuit is removed
- RS-485 communication
- Output power, voltage, current and other information according to customer needs
- Battery heating function
- When photovoltaic input is available, heating starts when temperature is below 0℃, and stops when temperature rises to 8℃
- Heating power
- Maximum 15W
- Storage temperature
- -20~35℃
- Battery case Dimensions
- 500mm*98mm*82mm
- Product capacity
- 20%-30%
- Battery material
- Lithium iron phosphate/LifePO4 battery
Battery life and charging
- Power off battery life
- 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
- Power on battery life
- About 25 days (normal temperature, no load)
- Load battery life
- Actual operating time depends on the connected load, battery capacity and operating conditions. For reference, the system runtime can be estimated by dividing the usable battery capacity (Wh) by the total load power (W), assuming no solar charging.
- Recharge time (0~100% power)
- Approx. 2–3 days under standard sunlight conditions (4–5 peak sun hours per day, normal temperature). Actual charging time may vary depending on sunlight intensity, system efficiency and power consumption.
All-in-one Package
- Size
- 730*510*225MM
- Weight (Include bracket and accessories)
- 11.5KG
- Content
1* Solar Panel
1* Battery case (inside with battery) with DC output connectors
1* Bracket for Solar panel &Battery case
1* U Shape mount for Pole installation
1* Screws pack
