Choosing an Outdoor Solar Power System: Five Key Factors

Choosing an outdoor solar power system starts with evidence, not panel wattage alone. The five key factors are the verified electrical load and interfaces, solar access during the design month, battery autonomy under expected temperatures, the practical demands of outdoor installation, and the system’s ability to be supported or expanded over its working life.

For UK projects, winter conditions frequently present the most demanding combination of shorter days, low sun angles and prolonged cloud. Buyers should therefore compare systems against a documented site and load profile rather than assuming that a larger panel or battery will automatically provide dependable operation.

1. Verified load and electrical interfaces

A supplier cannot select a suitable system from a device category alone. “One camera”, “a wireless bridge” or “a small switch” does not state the actual power demand, operating voltage, connector type or peak consumption.

Begin by creating a load schedule for every device that will draw energy from the solar system. Record:

Nominal and maximum power consumption
Required input voltage and acceptable voltage range
Operating hours per day
Continuous, scheduled or event-driven operation
Start-up, heater, infrared illumination or radio transmission peaks
Number and type of power outputs required
Cable length and expected voltage drop
Any planned equipment that is not installed initially

Use measured consumption where possible. If measurements are unavailable, use the equipment manufacturer’s maximum input figure rather than relying only on a typical or average value. A camera may consume more after dark when infrared LEDs or heaters operate, while a radio can have short transmission peaks that are hidden by its headline average.

Confirm the complete power path

The load calculation must include more than the endpoint devices. Controllers, voltage converters, PoE injectors, switches, radios and other intermediate equipment may all consume power or introduce conversion losses.

An outdoor solar system with DC12V outputs does not automatically provide native PoE. If the network equipment expects 24V passive PoE, IEEE PoE or another voltage, confirm the required conversion hardware, pin allocation, output capacity and environmental suitability. Also check whether the controller can support the combined continuous and peak currents.

The Maxsol product range provides useful examples of different scales, but they should not be treated as automatic matches:

The CS6030 60W and 384Wh solar system documents a 60W monocrystalline panel, 12.8V 30Ah 384Wh LiFePO4 battery, MPPT controller and three DC12V outputs.
The CS12060 120W and 768Wh solar system documents a 120W monocrystalline panel, 12.8V 60Ah 768Wh LiFePO4 battery, MPPT controller and three DC12V outputs.

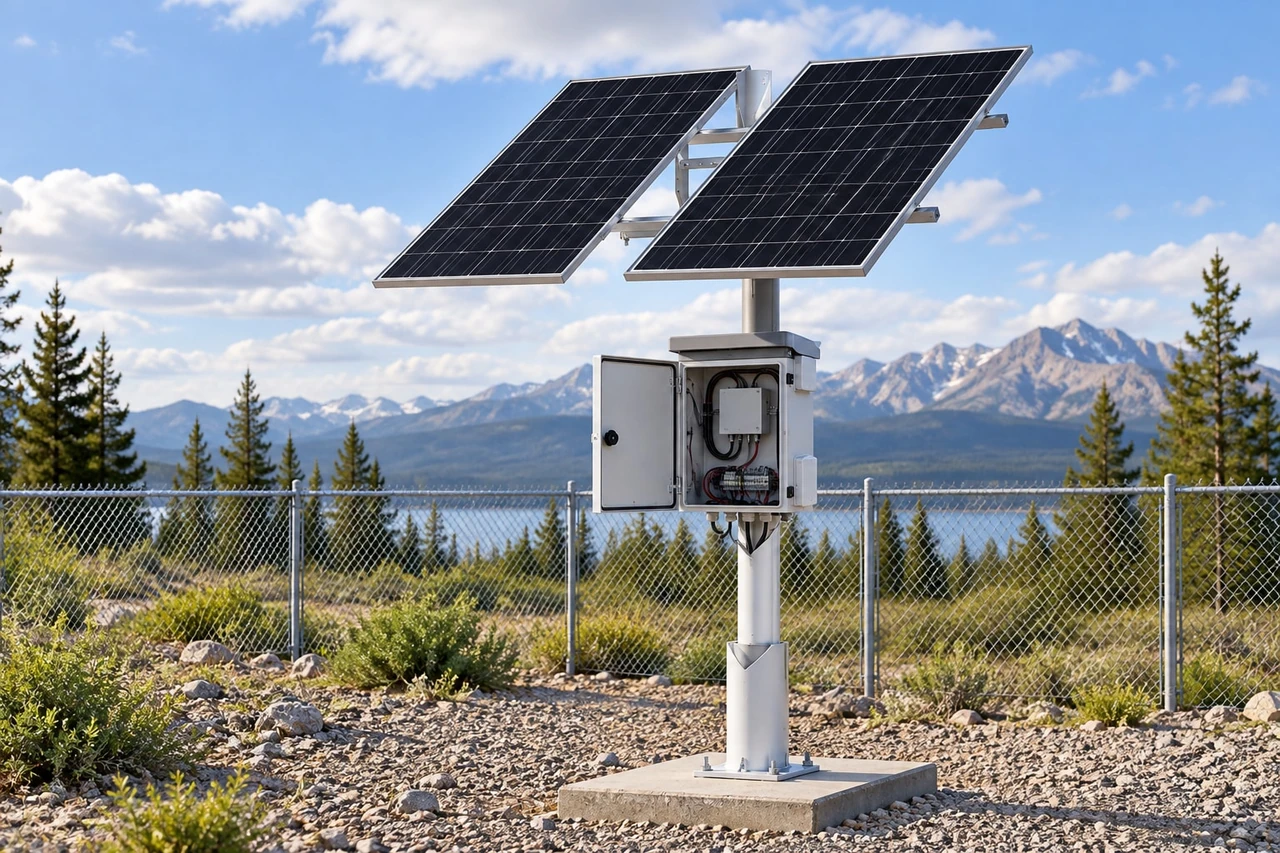

The CS400150 400W and 1920Wh solar system documents two 200W panels, a 12.8V 150Ah 1920Wh LiFePO4 battery, MPPT control and four DC12V outputs.

These figures help establish the available scale and output arrangement. They do not demonstrate that a particular model will support an unspecified site, load or runtime. The current datasheet, supplied configuration and controller limits still need to be checked.

For a more detailed approach to collecting CCTV load data, see the guide to sizing an off-grid solar power system for CCTV.

Common mistake: multiplying nominal device wattage by 24 hours while omitting conversion losses, night-time functions, ancillary equipment and peak current.

2. Design-month solar access and shading

Solar generation must be assessed for the least favourable operating period, not an annual average or a bright summer day. The design month should reflect when the site must remain operational and when usable solar energy is expected to be lowest.

In the UK, the assessment should pay particular attention to winter sun angles, short daylight periods and persistent overcast conditions. The result will vary by site, panel orientation, local horizon and shading, so a generic national assumption is not enough for final selection.

Ask the supplier or designer which solar input data were used and whether the estimate accounts for:

Site location
Panel tilt and orientation
Low winter sun angles
Buildings, parapets, fencing and street furniture
Trees and seasonal vegetation
New construction or future obstructions
Dirt, leaves, bird fouling or snow cover
System and cable losses
Controller input limits

Survey shading at the correct time

A clear view at midday does not prove that the panel has suitable access throughout the usable charging period. A tree, mast or nearby building may cast a long shadow during winter even if it causes little difficulty in summer.

Where possible, record the horizon and potential obstructions from the proposed panel position. Check morning and afternoon exposure rather than taking a single photograph. For critical projects, use a structured solar-path or shading assessment instead of visual judgement alone.

Partial shading can materially reduce panel output. The exact effect depends on the panel configuration, electrical design and shading pattern, so buyers should ask how the quoted generation estimate handles it. If two modules are used, also confirm their wiring arrangement and whether both can be mounted with comparable solar access.

Evidence to request: a design-month energy estimate showing the assumed solar resource, panel orientation, recognised losses and daily load. A statement that the panel is “large enough” is not a substitute for those inputs.

Common mistake: selecting from annual average sunshine and discovering that the energy balance becomes inadequate during the months when surveillance or communications are most important.

3. Battery autonomy, temperature and protection

Battery capacity determines how much energy can be stored, but the headline watt-hour figure is not the same as guaranteed usable energy or runtime. Actual autonomy depends on permitted depth of discharge, conversion losses, controller settings, battery temperature, battery condition and the real load.

A simple comparison begins with:

Nominal battery energy ÷ average load = theoretical runtime

That result is only a screening figure. It assumes that all nominal energy is available and ignores system losses and protection thresholds. A credible proposal should instead state the usable energy assumption and explain how it was derived.

When comparing batteries, ask:

What battery chemistry and nominal capacity are supplied?
What usable energy is assumed in the autonomy calculation?
Which low-voltage threshold disconnects the load?
How and when is the load reconnected?
What happens after several low-solar days?
Are there separate priorities for critical and non-critical loads?
What charging and discharging temperatures apply?
What protection is included against overcharge, excessive discharge, short circuit or overcurrent?
Can battery, controller and load status be inspected on site or remotely?

Temperature affects more than the enclosure

Outdoor batteries may face conditions well outside normal indoor equipment temperatures. Low temperature can reduce available energy, while charging restrictions may apply to some battery chemistries. High temperatures can also influence performance and ageing.

Do not assume that an outdoor cabinet automatically maintains the battery within its permitted charging range. Confirm the battery limits, controller behaviour and any thermal management provisions for the proposed site. The design should address both ambient temperature and heat created inside an enclosure exposed to sunlight.

Autonomy should be specified as a design objective tied to stated conditions, not as an unconditional number of days. There is no universal runtime that applies to every load, season and location, and no panel-and-battery combination can provide a credible 24/7 guarantee without defined assumptions.

For camera projects, the broader guide to choosing a solar power system for outdoor security cameras explains how operating mode and site conditions influence selection.

Common mistake: comparing batteries only by amp-hours. Amp-hour values are meaningful only alongside battery voltage, while usable autonomy also depends on control settings, temperature and system losses.

4. Outdoor mounting, cabling and maintenance

A technically adequate energy budget can still fail as a project design if the equipment cannot be mounted securely, cabled correctly or maintained safely. Installation conditions should be considered before ordering, particularly at poles, remote compounds and sites with restricted access.

Review the proposed arrangement for:

Panel size, weight and mounting orientation
Pole, wall or ground-mount compatibility
Wind exposure and structural loading
Cabinet dimensions and mounting position
Access for installation and battery replacement
Cable entry, gland size and bend radius
DC cable length and voltage drop
Earthing and surge-protection strategy
Separation of power and data cables where required
Water drainage, condensation and ventilation
Tamper exposure and physical access
Safe isolation and labelling

The installer or responsible project engineer should determine the structural, electrical and site-safety requirements. Product dimensions and mounting accessories need to be checked against the actual structure rather than inferred from catalogue photographs.

Design for realistic maintenance

An off-grid installation is not maintenance-free. Panels may need cleaning, vegetation can grow into the solar path, connectors can loosen or corrode, and enclosure seals can be damaged during service visits.

A practical maintenance plan should define:

How the panel can be reached and cleaned safely.
How shading and vegetation will be inspected.
How battery and controller status will be checked.
How cable entries, connectors and protective devices will be examined.
How faults can be isolated without dismantling the whole installation.
Which replacement parts and tools are required.
Who records configuration changes and service history.

Site access cost can be more significant than the price difference between system sizes, especially when specialist access equipment is needed. Buyers should therefore compare ease of inspection and component replacement, not just initial hardware.

Common mistake: positioning the cabinet or panel for easy initial installation but making later cleaning, isolation or battery replacement difficult.

5. Lifecycle support and expansion

The selected system should accommodate foreseeable changes without depending on unverified spare capacity. Cameras may be replaced by models with higher night-time consumption, radio links may be upgraded, or an additional sensor or network device may be added.

Ask what can be expanded and what cannot. Relevant questions include:

How much controller capacity remains after the initial load?
Can more solar input be added within the controller limits?
Can battery capacity be expanded, and under what matching rules?
Are unused DC outputs available?
Would an extra device require a different voltage or PoE converter?
Can cables, glands and protective devices accept the future configuration?
Are configuration records and current datasheets available?
Which components are replaceable without changing the complete system?
How are firmware, controller settings or monitoring tools managed?
What warranty and technical-support terms apply to the quoted configuration?

Expansion should be engineered rather than assumed. Adding a panel can exceed controller input limits; adding a battery can create compatibility or balancing issues; and adding a load may reduce winter autonomy below the design objective.

Documentation also matters over the system lifecycle. Procurement teams should retain the bill of materials, wiring diagram, controller settings, battery details, cable schedule and original design assumptions. Without these records, a later replacement may look physically compatible while differing electrically.

Maxsol was established in 2019 as a solution-oriented outdoor power and networking brand. When considering its systems—or alternatives from another supplier—compare the documented configuration and ongoing support arrangements rather than relying on brand-level portfolio claims.

Common mistake: buying exactly enough capacity for the first installation while leaving no defined route for a likely extra camera, radio or sensor.

Five-factor supplier comparison checklist

Use the same site information and load schedule for every supplier. Otherwise, differences between quotations may reflect different assumptions rather than better equipment.

Factor	Evidence to request	Warning signs
Verified load and interfaces	Device-by-device load schedule, maximum and peak demand, voltage requirements, output count, conversion equipment and controller limits	Selection based only on the number of cameras or headline panel wattage
Design-month solar access	Site-specific design month, orientation, tilt, shading assumptions, recognised losses and expected energy balance	Annual averages, ideal sunlight figures or no shading assessment
Battery autonomy and temperature	Nominal and usable energy assumptions, load-disconnect settings, temperature limits, protection details and stated autonomy conditions	Runtime presented without load, temperature or usable-capacity assumptions
Outdoor installation and maintenance	Mounting plan, dimensions, cable schedule, voltage-drop check, access method and maintenance tasks	No allowance for structure, cable distance, cleaning or safe component replacement
Lifecycle support and expansion	Current datasheets, wiring information, spare controller and output capacity, replacement options, warranty terms and support process	Unsupported claims that panels, batteries or loads can simply be added later

Before approving a system, confirm that all five areas are documented in the quotation or design pack. Where a figure varies by configuration—such as controller capacity, charging temperature, protection or warranty—request confirmation for the exact supplied version.

The practical next step is to compare the linked Maxsol models with your required port or output count, measured load, cable and network distance, design-month power demand, outdoor environment and management requirements. Treat the three systems as scale references, then verify the current datasheet and supplied configuration before making a final selection.
